CSS Outline


This element has a black border and a green outline with a width of 10px.

Try it Yourself »

CSS Outline

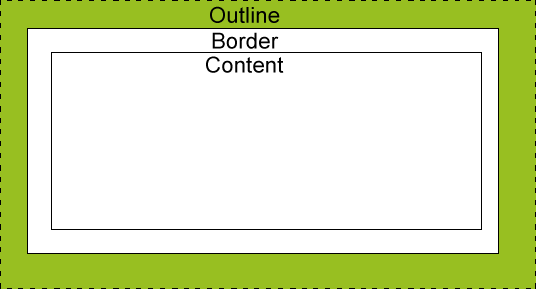

An outline is a line that is drawn around elements, OUTSIDE the borders, to make the element "stand out".

CSS has the following outline properties:

  • outline-style
  • outline-color
  • outline-width
  • outline-offset
  • outline

Note: Outline differs from borders! Unlike border, the outline is drawn outside the element's border, and may overlap other content. Also, the outline is NOT a part of the element's dimensions; the element's total width and height is not affected by the width of the outline.


Outline Style

The outline-style property specifies the style of the outline, and can have one of the following values:

  • dotted - Defines a dotted outline
  • dashed - Defines a dashed outline
  • solid - Defines a solid outline
  • double - Defines a double outline
  • groove - Defines a 3D grooved outline
  • ridge - Defines a 3D ridged outline
  • inset - Defines a 3D inset outline
  • outset - Defines a 3D outset outline
  • none - Defines no outline
  • hidden - Defines a hidden outline

The following example shows the different outline-style values:

A dotted outline.

A dashed outline.

A solid outline.

A double outline.

A groove outline. The effect depends on the outline-color value.

A ridge outline. The effect depends on the outline-color value.

An inset outline. The effect depends on the outline-color value.

An outset outline. The effect depends on the outline-color value.

Example

p.dotted {outline-style: dotted;}
p.dashed {outline-style: dashed;}
p.solid {outline-style: solid;}
p.double {outline-style: double;}
p.groove {outline-style: groove;}
p.ridge {outline-style: ridge;}
p.inset {outline-style: inset;}
p.outset {outline-style: outset;}
Try it Yourself »

Note: None of the other outline properties will have any effect, unless the outline-style property is set!



Outline Color

The outline-color property is used to set the color of the outline.

The color can be set by:

  • name - specify a color name, like "red"
  • RGB - specify a RGB value, like "rgb(255,0,0)"
  • Hex - specify a hex value, like "#ff0000"
  • invert - performs a color inversion (which ensures that the outline is visible, regardless of color background)

The following example shows some different outlines with different colors. Also notice that these elements also have a thin black border inside the outline:

A solid red outline.

A double green outline.

An outset yellow outline.

Example

p.ex1 {
    border: 1px solid black;
    outline-style: solid;
    outline-color: red;
}

p.ex2 {
    border: 1px solid black;
    outline-style: double;
    outline-color: green;
}

p.ex3 {
    border: 1px solid black;
    outline-style: outset;
    outline-color: yellow;
}
Try it Yourself »

The following example uses outline-color: invert, which performs a color inversion. This ensures that the outline is visible, regardless of color background:

A solid invert outline.

Example

p.ex1 {
    border: 1px solid yellow;
    outline-style: solid;
    outline-color: invert;
}
Try it Yourself »

Outline Width

The outline-width property specifies the width of the outline, and can have one of the following values:

  • thin (typically 1px)
  • medium (typically 3px)
  • thick (typically 5px)
  • A specific size (in px, pt, cm, em, etc)

The following example shows some outlines with different widths:

A thin outline.

A medium outline.

A thick outline.

A 4px thick outline.

Example

p.ex1 {
    border: 1px solid black;
    outline-style: solid;
    outline-color: red;
    outline-width: thin;
}

p.ex2 {
    border: 1px solid black;
    outline-style: solid;
    outline-color: red;
    outline-width: medium;
}

p.ex3 {
    border: 1px solid black;
    outline-style: solid;
    outline-color: red;
    outline-width: thick;
}

p.ex4 {
    border: 1px solid black;
    outline-style: solid;
    outline-color: red;
    outline-width: 4px;
}
Try it Yourself »

Outline - Shorthand property

The outline property is a shorthand property for setting the following individual outline properties:

  • outline-width
  • outline-style (required)
  • outline-color

The outline property is specified as one, two, or three values from the list above. The order of the values does not matter.

The following example shows some outlines specified with the shorthand outline property:

A dashed outline.

A dotted red outline.

A 5px solid yellow outline.

A thick ridge pink outline.

Example

p.ex1 {outline: dashed;}
p.ex2 {outline: dotted red;}
p.ex3 {outline: 5px solid yellow;}
p.ex4 {outline: thick ridge pink;}
Try it Yourself »

Outline Offset

The outline-offset property adds space between an outline and the edge/border of an element. The space between an element and its outline is transparent.

The following example specifies an outline 15px outside the border edge:

This paragraph has an outline 15px outside the border edge.

Example

p {
    margin: 30px;
    border: 1px solid black;
    outline: 1px solid red;
    outline-offset: 15px;
}
Try it Yourself »

The following example shows that the space between an element and its outline is transparent:

This paragraph has an outline 15px outside the border edge.

Example

p {
    margin: 30px;
    background: yellow;
    border: 1px solid black;
    outline: 1px solid red;
    outline-offset: 15px;
}
Try it Yourself »

Test Yourself with Exercises!


All CSS Outline Properties

Property Description
outline A shorthand property for setting outline-width, outline-style, and outline-color in one declaration
outline-color Sets the color of an outline
outline-offset Specifies the space between an outline and the edge or border of an element
outline-style Sets the style of an outline
outline-width Sets the width of an outline
