# SciPy Graphs

## Working with Graphs

Graphs are an essential data structure.

SciPy provides us with the module `scipy.sparse.csgraph` for working with such data structures.

Adjacency matrix is a `nxn` matrix where `n` is the number of elements in a graph.

And the values represents the connection between the elements.

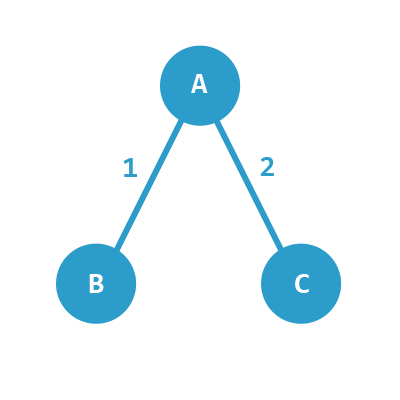

Example: For a graph like this, with elements A, B and C, the connections are:

A & B are connected with weight 1.

A & C are connected with weight 2.

C & B is not connected.

The Adjency Matrix would look like this:

```
A B C
A:[0 1 2]
B:[1 0 0]
C:[2 0 0]

```

Below follows some of the most used methods for working with adjacency matrices.

## Connected Components

Find all of the connected components with the `connected_components()` method.

### Example

import numpy as np
from scipy.sparse.csgraph import connected_components
from scipy.sparse import csr_matrix

arr = np.array([
[0, 1, 2],
[1, 0, 0],
[2, 0, 0]
])

newarr = csr_matrix(arr)

print(connected_components(newarr))
Try it Yourself »

## Dijkstra

Use the `dijkstra` method to find the shortest path in a graph from one element to another.

It takes following arguments:

1. return_predecessors: boolean (True to return whole path of traversal otherwise False).
2. indices: index of the element to return all paths from that element only.
3. limit: max weight of path.

### Example

Find the shortest path from element 1 to 2:

import numpy as np
from scipy.sparse.csgraph import dijkstra
from scipy.sparse import csr_matrix

arr = np.array([
[0, 1, 2],
[1, 0, 0],
[2, 0, 0]
])

newarr = csr_matrix(arr)

print(dijkstra(newarr, return_predecessors=True, indices=0))
Try it Yourself »

## Floyd Warshall

Use the `floyd_warshall()` method to find shortest path between all pairs of elements.

### Example

Find the shortest path between all pairs of elements:

import numpy as np
from scipy.sparse.csgraph import floyd_warshall
from scipy.sparse import csr_matrix

arr = np.array([
[0, 1, 2],
[1, 0, 0],
[2, 0, 0]
])

newarr = csr_matrix(arr)

print(floyd_warshall(newarr, return_predecessors=True))
Try it Yourself »

## Bellman Ford

The `bellman_ford()` method can also find the shortest path between all pairs of elements, but this method can handle negative weights as well.

### Example

Find shortest path from element 1 to 2 with given graph with a negative weight:

import numpy as np
from scipy.sparse.csgraph import bellman_ford
from scipy.sparse import csr_matrix

arr = np.array([
[0, -1, 2],
[1, 0, 0],
[2, 0, 0]
])

newarr = csr_matrix(arr)

print(bellman_ford(newarr, return_predecessors=True, indices=0))
Try it Yourself »

## Depth First Order

The `depth_first_order()` method returns a depth first traversal from a node.

This function takes following arguments:

1. the graph.
2. the starting element to traverse graph from.

### Example

Traverse the graph depth first for given adjacency matrix:

import numpy as np
from scipy.sparse.csgraph import depth_first_order
from scipy.sparse import csr_matrix

arr = np.array([
[0, 1, 0, 1],
[1, 1, 1, 1],
[2, 1, 1, 0],
[0, 1, 0, 1]
])

newarr = csr_matrix(arr)

print(depth_first_order(newarr, 1))
Try it Yourself »

The `breadth_first_order()` method returns a breadth first traversal from a node.

This function takes following arguments:

1. the graph.
2. the starting element to traverse graph from.

### Example

import numpy as np
from scipy.sparse import csr_matrix

arr = np.array([
[0, 1, 0, 1],
[1, 1, 1, 1],
[2, 1, 1, 0],
[0, 1, 0, 1]
])

newarr = csr_matrix(arr)

Try it Yourself »

## Exercise:

Insert the missing method to find all the connected components:

```import numpy as np
from scipy.sparse.csgraph import connected_components
from scipy.sparse import csr_matrix

arr = np.array([
[0, 1, 2],
[1, 0, 0],
[2, 0, 0]
])

newarr = csr_matrix(arr)

print((newarr))
```

Start the Exercise
